Industrial Process Uncooled Infrared Camera Module With 8um-14um Spectral Range

Name: Industrial Process Uncooled Infrared Camera Module With 8um14um Spectral Range
Brand: Guide
Price: 1 USD

Place of Origin : Hubei, China (Mainland)

Brand Name : Guide

Model Number : Plug417R

Supply Ability : 100000 Piece/Pieces per Month

Packaging Details : packed in a packaging box with USB cable and charger

MOQ : 1 Piece/Pieces

Price : Negotiable

Usage : Industrial measuring of temperature

Theory : Infrared Thermometer

Accuracy : ±2

Temperature range : -20℃~150℃, -20℃~+150℃

Detector type : Uncooled VOx Micro bolometer

Resolution : 400x300

Pixel pitch : 17um

Spectral range : 8um-14um

Port : Wuhan

Contact Now

Industrial Process Uncooled Infrared Camera Module With 8um-14um Spectral Range

Product Description

OR2 General Thermal Module for Temperature Measurement features by 384*288 resolution, different lens for options, industrial-standard open interfaces and general protocol, it is designed for the applications such as electrical inspection, industrial production line’s inspection and OEM integration.

This module supports digital video signals output and full radiometric pictures and compressed video’s storage. Its compatibility and extensibility make it could be simply redeveloped or integrated into any optoelectronic system.

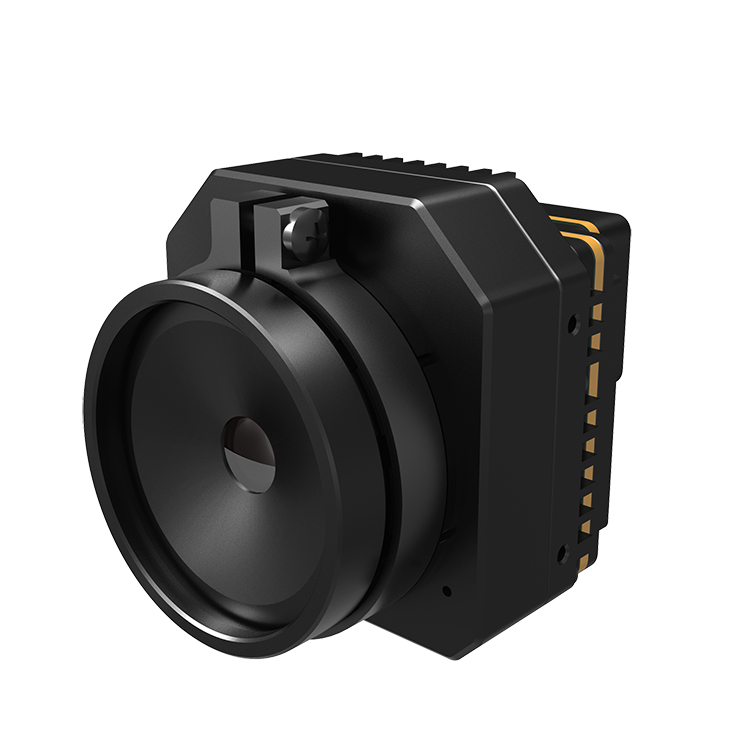

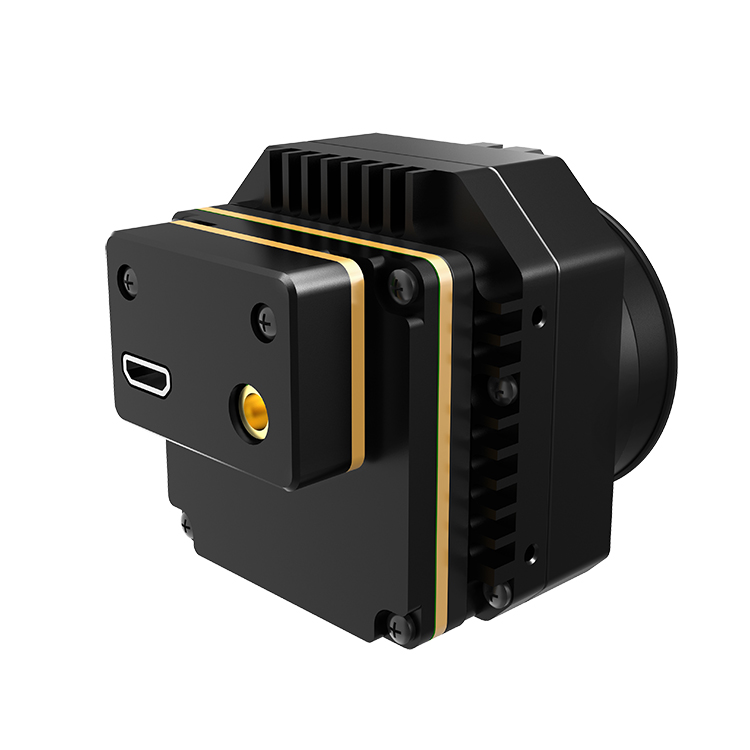

Product Overviews

Industrial Process Uncooled Infrared Camera Module With 8um-14um Spectral Range

Specifications

Plug417R
Detector
IR resolution	400×300
Pixel size	17μm
NETD	<50mk/f1.0/25℃
Spectral Range	8~14μm
Lens
Focal Length	7mm/f1.1,19mm/f1.0
Focus	Fixed/Manual/Electric
Image Processing
Frame rate	9Hz,25Hz/50Hz(PAL),30Hz/60Hz(NTSC)
Analog video	PAL/NTSC
Digital zoom	1-8x continual zoom, step size 1/8
Color palettes	9 standard(customized, on demand)
Boot screen	Customized
Boot time	<15S
AGC	Yes,adaptive dynamic range compression
IIE	Intelligent gain control
SDK	Support secondary development
Interface
Standard external interface	50Pin_HRS interface:DF12-50DS-0.5V(86)
Control
Communication protocol	RS232
Baud rate	115200(default)
Measurement
effective range	PAL/25Hz,-10℃-50℃
Temperature range	-20℃-150℃
Accuracy	±2℃ or ±2% of reading for ambient temperature 15°C to 35°C
Power System
Power supply	DC:4-6V
Power consumption	≤1.5W@5V@25℃
Environmental Parameters	Environmental Parameters
Operating temperature	-40℃-70℃
Storage temperature	-45℃-85℃
Certification	RoHS,REACH,WEEE
EMC	FCC/CE/ClassB
Physical Characteristics
Size	44.5mm×44.5mm×36.35mm
Weight	90g
